Technical Memorandum



DATE:   October 18, 2018

TO:         Boston Region Metropolitan Planning Organization

FROM:   Seth Asante, MPO Staff

RE:     Selection of FFY 2019 LRTP Priority Corridor Study Location



1          background

During the development of the Boston Region Metropolitan Planning Organization’s (MPO) Long-Range Transportation Plan (LRTP), Charting Progress to 2040, the MPO staff identified the existing needs for all transportation modes in the region.1 The results were compiled in the LRTP Needs Assessment, which is used to guide the MPO’s decision-making process for selecting transportation projects to fund in future Transportation Improvement Programs (TIP). The MPO goals that guided the development of the LRTP Needs Assessment include the following:





Based on previous and ongoing transportation-planning work—including the MPO’s Congestion Management Process (CMP) and planning studies—MPO staff identified several priority arterial roadway segments that require maintenance, modernization, and safety and mobility improvements. These locations are documented in the LRTP Needs Assessment.



To address problems on some of these arterial segments, the Addressing Priority Corridors from the Long-Range Transportation Plan Needs Assessment study was included in the federal fiscal year (FFY) 2019 Unified Planning Work Program (UPWP).2 This memorandum presents the results of the selection process and recommendation of the location to study to the MPO board for discussion.3



By focusing on arterial segments rather than intersections, planners can evaluate multimodal transportation needs comprehensively (with the goal of creating Complete Streets). A holistic approach to analyzing problems and forming recommendations ensures that the needs of all transportation users are considered. Ultimately, this approach will result in roadways where it is safe to cross the street and walk or cycle to shops, schools, train stations, and recreational facilities, and where buses can run on time. Typically, the recommended improvements are within a roadway’s right-of-way. They take into account the needs of abutters and users, and the interests and support of stakeholders.



2          Selection Procedure

The process for selecting study locations consisted of three steps.



  1. MPO staff gathered and assembled data about the arterial segments from the LRTP Needs Assessment and used the data to identify and prioritize them.
  2. MPO staff examined the arterial segments more closely by applying specific criteria.
  3. Staff scored each arterial segment and assigned a priority of low, medium, or high to each segment.



Details about each step in the process are provided below.



2.1      Gathering Data and Identifying Potential Arterial Segments

MPO staff identified 44 arterial segments in 37 municipalities in the Boston region based on the following data sources:



Table 1 (attached) presents the data and information gathered on each of the following arterial segments:





Table 1 also includes the score and priority rating that were determined by applying the selection criteria. The processes for scoring and assigning priority ratings to segments are described below.



2.2      Selection Criteria

MPO staff examined the arterial segments more closely by applying the following six criteria and assigning points based on the number of criteria that apply to each location.



  1. Safety Conditions, 0–4 points (each of the four criteria is worth one point)



  1. Congested Conditions, 0–2 points (each of the two criteria is worth one point)



  1. Multimodal Significance, 0–3 points (each of the three criteria is worth one point)



  1. Regional Significance, 0–4 points (each of the four criteria is worth one point)



  1. Regional Equity, 0–2 points (each of the two criteria is worth one point)



  1. Implementation Potential, 0–3 points (each of the three criteria is worth one point)



2.3      Rating Potential Roadways

MPO staff rated arterial segments with a total score of 10 or fewer points as low priority; those with a score of 11 to 12 points as medium priority; and those with a total score of 13 or more points as high priority. MPO staff gave 13 arterial segments a high-priority rating based on safety and operational needs, multimodal and regional significance, regional equity, and support for improvements from agencies and municipalities. Staff then examined high-priority segments more closely, and excluded arterials that had projects meeting any of the following criteria from further consideration for this cycle of the Priority Corridors study: recently completed, in construction, in design, under study, or programmed in the TIP with the 25 percent design completed.



Staff also evaluated the pedestrian accommodation and safety improvement needs for the two segments with the highest scores by applying the MPO’s recently developed Pedestrian Report Card Assessment.4 The locations highly qualify based on pedestrian accommodation or safety improvement requirements. Appendix A contains detailed results of the assessments. The two arterial segments with the highest scores were:

Based on this evaluation, MPO staff recommends studying the segment on Route 16 from Route 99 in Everett to Webster Avenue/Garfield Avenue in Chelsea. Figure 1 shows the study area with seven HSIP intersection crash clusters. Figure 2 shows the general locations of previous Priority Corridor studies, and the location identified for this year’s study.



3          Arterial Segment SELECTED for Study: Route 16 in Everett and Chelsea

The arterial segment that was selected for study was Route 16 in Chelsea and Everett, based on a total score of 15, using the five selection criteria (safety, congestion, multimodal and regional significance, regional equity, and implementation potential). Route 16 runs east-west through Everett and Chelsea, from Revere to the east to Medford to the west. MassDOT recently acquired Route 16 from I-93 in Medford to Route 145 in Revere from the Department of Conservation and Recreation and the entire section would be maintained by Highway District 4. In Chelsea and Everett, the roadway primarily passes through commercial, industrial, and residential areas. Current evaluation indicates that there are safety, capacity management, and mobility problems in the segment. Seven locations along the segment contain HSIP-eligible crash clusters, five of which are in the top 200 intersection crash clusters in Massachusetts. In addition, the segment has a higher-than-average crash rate for its functional class. Additionally, several intersections in the segment are congested, which create long traffic queues during peak travel periods. Finally, accommodations for pedestrians and bicyclists are poor and need improvement—there are gaps in the sidewalk network and there is need for better bicycle connections from Route 16 to Route 99.



The Cities of Chelsea and Everett and MassDOT Highway Division are considering Complete Streets solutions for the corridor and have expressed support for and willingness to participate in a study of this arterial segment (See Appendix B). MPO staff would identify the problems and develop Complete Street solutions that could be implemented by MassDOT. The recommended arterial segment meets the selection criteria of this study, especially by supporting the transportation improvement priorities of the MPO’s LRTP. The recommended arterial segment is approximately 1.5 miles long and would require considerable resources for evaluating alternative improvement plans.



4          Next Steps

After the MPO board discusses this recommendation, staff will meet with officials from the Cities of Chelsea and Everett, MassDOT, MAPC, and other stakeholders to discuss the study specifics, conduct field visits, collect data, identify needs, and develop solutions.



SA/sa

1 Boston Region Metropolitan Planning Organization, Charting Progress to 2040: The New Long-Range Transportation Plan of the Boston Region Metropolitan Planning Organization, endorsed by the Boston Region MPO on July 30, 2015.

2 Unified Planning Work Program, Federal Fiscal Year 2019, endorsed by the Boston Region Metropolitan Planning Organization on June 21, 2018.

3 Boston Region MPO Work Program for Addressing Priority Corridors from the Long-Range Transportation Plan Needs Assessment: Federal Fiscal Year 2019, September 20, 2018.

4 Ryan Hicks and Casey-Marie Claude, Boston Region Metropolitan Planning Organization, Pedestrian Level-of-Service Memorandum, January 19, 2017.

FFY 2019 LRTP Priority Corridor Study Location Appendix

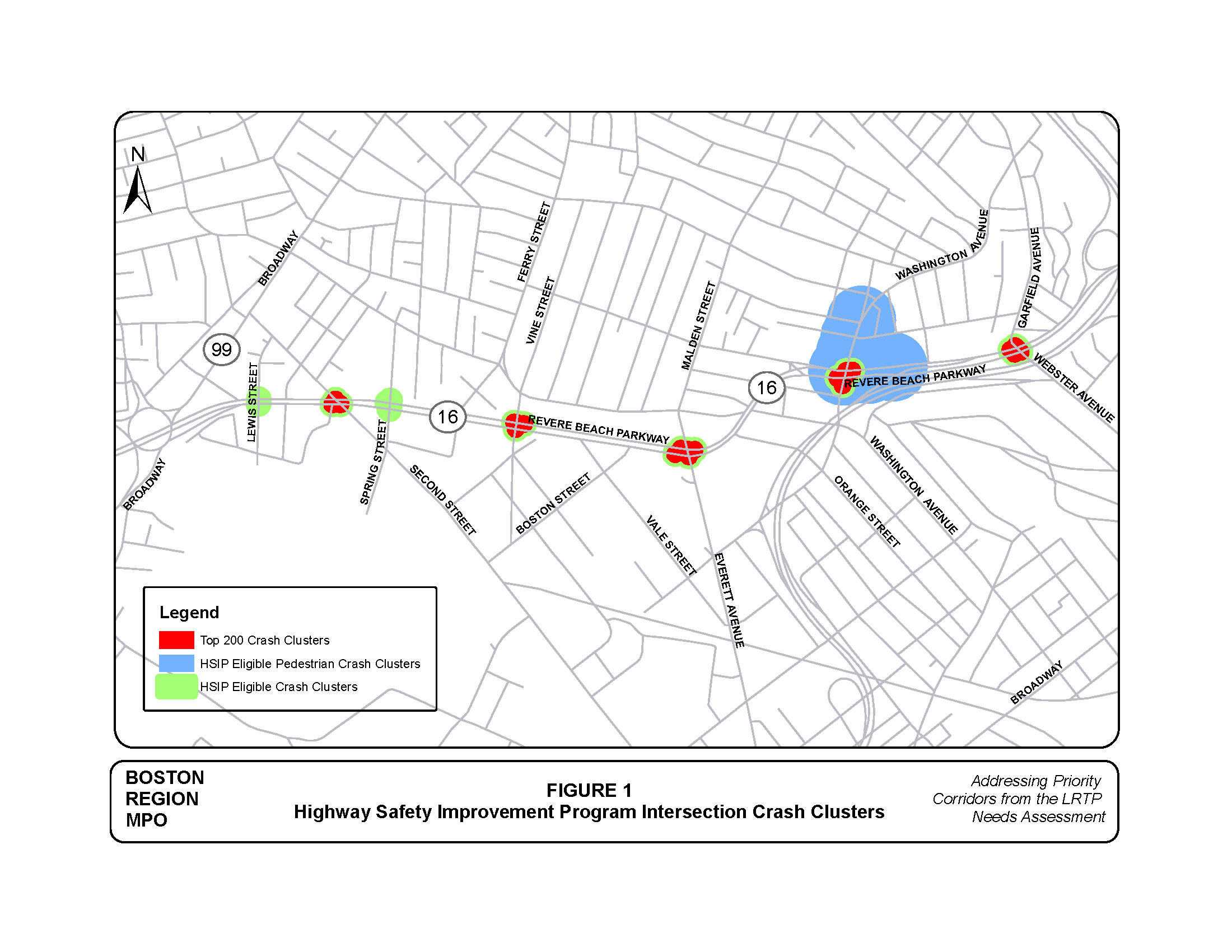

FIGURE 1
Figure 1 is a computer-drawn map that shows the study area on Route 16 in Chelsea and Everett and the high-crash locations

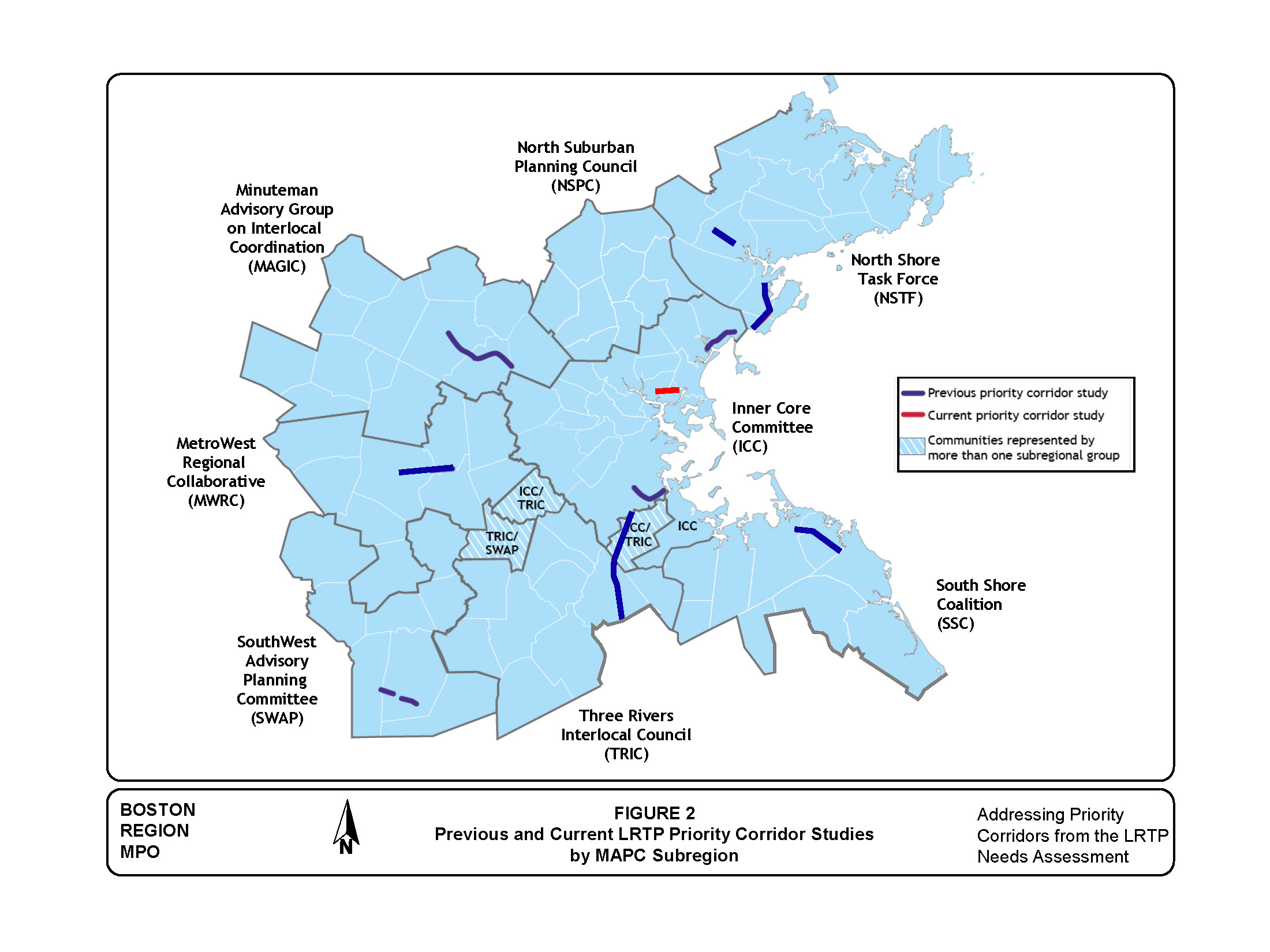

Figure 2
Figure 2 is a computer-drawn map that shows the subregions of the Boston Region Metropolitan Planning Organization area and the locations of previous and current priority corridor studies.

TABLE 1
Arterial Segments Considered for Study: Priority Corridors for Long-Range Transportation Plan Needs Assessment Study
Arterial Segment Community MAPC Subregion MassDOT District Jurisdiction National Highway System Functional Class* Number of Top-200 High-Crash Locations 2013–15 Number of HSIP-Eligible Crash Clusters 2013–15** Travel Time Index Transit Service Crowded or Late Bus In or Near Environmental Justice Zone Study, Project, or TIP Project Safety Conditions*** Congested Conditions*** Multimodal Significance*** Regional Significance*** Regional Equity*** Implementation Potential*** Score Priority Rating Source of Reference [Hide] Summary of Comments
Selected for Study: Route 16 (Revere Beach Parkway) Chelsea and Everett ICC 4 MassDOT Yes 2 3 7 2.97 MBTA bus Routes 97, 99, 106, 110, 112, 104, 105, and 109

MBTA Orange Line Rapid Transit at Wellington and
MBTA Commuter Rail at Chelsea
Yes Yes

The entire segment lies within EJ zones.
DCR announced a $500,000 comprehensive study of the parkway system for bike lanes in FFY 2015. The goals of the study include updated traffic information, assessment of parkway conditions, and assessment and understanding of deficiencies along the heavily cycled parkways.  3 2 3 4 0 3 15 High ICC, UPWP Fall 2012, FFY 2015 MassDOT D4 comments This arterial segment was selected because it has seven HSIP clusters in the segment, five of which are in the top-200 high-crash locations in Massachusetts. In addition, MassDOT recently acquired Route 16 from I-93 in Medford to Route 145 in Revere from the Department of Conservation and Recreation and the Highway District 4  has suggested studying Route 16 (Revere Beach Parkway) from Second Street in Everett to Webster Avenue/Garfield Avenue in Chelsea. The Cities of Everett and Chelsea have expressed their support, interest, and participation in the study.

Route 20 Weston MWRC 6 MassDOT Yes 3 1 3 4.06 MBTA bus Route 70

MBTA Commuter Rail at Waltham and Kendal Green
Yes Yes

An EJ Zone is located 0.1 mile from the end of the segment.
Intersection improvements Boston Post Road (Route 20) at Wellesley Street, preliminary design stage 3 2 2 4 1 2 14 High UPWP/LRTP outreach in 2012, 2013, and 2014 by MAGIC A congestion study was suggested through UPWP and LRTP outreach in 2012, 2013, and 2014 by MAGIC; a formal letter was submitted and verbal comments were made at an MWRC subregion meeting.

The location was resubmitted in a comment on Draft FFY 2014 UPWP and was suggested in the 2017 MPO outreach program.
Routes 4 and 225 Bedford and Lexington MAGIC 4 MassDOT, Bedford, and Lexington Yes (part) 3, 5 1 8 2.82 Three MBTA bus stops

MBTA bus Route 62
Yes None Great Road Project: Master Plan and Conceptual Design, prepared by VHB for the Town of Bedford in 2011, in preliminary design

The MassDOT-administered section, from I-95 to Hartwell Avenue, was the subject of a Lexington study (Hartwell Avenue Traffic Mitigation Plan Bedford Street Concept Plan)—and a road safety audit was performed for this segment in November 2011

MassDOT Project #607409: LexingtonReconstruction On Massachusetts Avenue, From Marrett Road To Pleasant StreetThe proposed project will address safety and capacity deficiencies at three intersections along Massachusetts Avenue; Marrett Road (Route 2A), Maple Street (Route 2A), and Pleasant Street (Routes 4/225). (Construction 2016-2018)
4 2 2 3 1 1 13 High   This arterial segment was not selected because it did not have the support of MassDOT District 4 and also sections of it had already been studied.

The Town of Bedford requested in FFY 2017 that the MPO study this arterial segment from I-95 in Lexington to Loomis Street in Bedford. The MAGIC subregion requested that the FFY 2012 UPWP and FFY 2013 UPWP include a study of Routes 4 and 225.

The MassDOT section from I-95 to Hartwell Avenue was the subject of a Lexington study.
Route 9 Framingham MWRC 3 MassDOT Yes 2 1 7 4.47 MWRTA bus Routes 1, 2, 3, 7, and 9 None Yes

More than one-half the route lies within or adjacent to an EJ zone.
MassDOT Project #603865 is located in Framingham at the intersection of Route 9 and Temple Street; in preliminary design

MassDOT Project #608006 Pedestrian Hybrid Beacon Installation at Route 9 and Maynard Road; 25% design stage

MassDOT Project #604991, Resurfacing and Related Work on Route 9, includes wheelchair ramp upgrades, additional sidewalks/repairs, and signal improvements; completed in autumn 2011

MassDOT Project #608006: Framingham- Pedestrian Hybrid Beacon Installation At Route 9 And Maynard RoadThe proposed project will construct an at-grade pedestrian crossing across Route 9 in the vicinity of Maynard Road and the Framingham Fire Station. (Design public hearing 2017)
3 2 2 4 1 1 13 High MassDOT District 3 comments, FFY 2015 This arterial segment was not selected because, according to MassDOT District 3, most of the intersections on this corridor have already been studied.
Route 107  Lynn ICC 4 MassDOT and Lynn Yes 3 2 12 2.86 MBTA bus Routes 424,426, 436, 441, 442, 450, 455, 456, 459, 429, and 435

MBTA Commuter Rail at River Works, Lynn/Central Square, and Swampscott

Ferry service
Yes Yes

The entire segment lies within EJ zones.
MassDOT Project #608927, Reconstruction of Route 107 in Lynn and Salem

 MassDOT Project #604952, Bridge Replacement, Route 107 over the Saugus River; Design exception submitted (as of 01/26/2017); The construction will begin in autumn 2018.

MassDOT Project #26710, Bridge Replacement, Route 107 over the Saugus River (Fox Hill Bridge); completed spring 2013

MassDOT Project #603938, Western Avenue Bridge over Saugus River (Fox Hill Bridge)
4 2 2 4 0 1 13 High   This arterial segment was not selected for study because a  Route 107 Corridor Study in Lynn and Salem has been completed by MassDOT recently and the proposed improvements would be addressed under project #608927, in design.
Route 28 Milton ICC and TRIC 6 MassDOT and Milton Yes 3 1 4 3.48 51 MBTA bus stops

MBTA bus Routes 240, 245, 24, 28, 26, 30, 31, and 33

MBTA Red Line Rapid Transit at Mattapan/Ashmont Station

BAT Route 12
Yes Yes

EJ zones are located at the northern end.
MassDOT Project #607342, Intersection and Signal Improvements at Route 28 (Randolph Avenue) and Chickatawbut Road; in preliminary design

MassDOT Project #106901, Roadway Reconstruction on Route 28 (Randolph Avenue) from Reedsdale Road to Milton/Quincy town line; completed 2008

Conceptual TIP #1008, Reconstruct the Intersection of Blue Hills Parkway and Brook Road
4 2 2 3 0 2 13 High MassDOT District 6 comments, FFY 2015 This arterial segment was not selected because there have been several improvements in this segment in recent years. In addition, in FFY 2018, MPO staff selected Route 138 in Milton as the subject of an LRTP Priority Corridor study
Route 114 Peabody NSTF 4 MassDOT and Peabody Yes 2 1 3 4.60 Three MBTA bus stops

MBTA bus Routes 435, 465
Yes Yes

One-half of the segment abuts an EJ zone.
MassDOT Project # 608567, Improvements at Route 114 at Sylvan Street, Cross Street, Northshore Mall, Loris Road, Route 128 Interchange, and Esquire Drive. Project locations were selected based on the HSIP Top 200 Crash Cluster mapping and in coordination with the District and Regional Planning Agency, in design 4 2 2 3 1 1 13 High   Route 114 in Peabody was listed as a potential corridor in need of signal progression and improvements to accommodate pedestrians and bicyclists. However, the arterial segment was not selected because, according to MassDOT Highway District 4, a road safety audit was completed for the segment in August 2016 and a consultant has started design work as part of project #608567. The location was suggested in the 2017 MPO outreach program.
Route 28 Randolph TRIC 6 MassDOT and Randolph Yes 3 1 5 3.00 50 MBTA bus stops

MBTA bus Routes 240 and 238

MBTA Commuter Rail at Holbrook/Randolph

BAT Route 12
Yes Yes

The entire segment lies within EJ Zones.
FFY 2008 Safety and Operations Analyses at Intersections study

Arterial Coordination Study, CTPS study (2010)

MassDOT Project #601735  Resurfacing and related work on and related work on a section of Route 28; completed 2008

MassDOT Project #601735 Resurfacing and related work on Route 28 from Union Square to Avon town line; completed 2006
4 2 2 4 0 1 13 High MassDOT District 6 comments, FFY 2015 The location has received several MassDOT projects and CTPS studies and it is not recommended for study.
Route 114 Salem NSTF 4 MassDOT and Salem Yes 2, 3 0 3 3.06 18 MBTA bus stops

MBTA bus Routes 450, 451, 455, 456, 459, and 465

MBTA Commuter Rail at Salem and Beverly

Ferry service
Yes Yes

One-half the segment abuts EJ zones.
Transportation Improvement Study for Routes 1A, 114, and 107 and Other Roadways in Downtown Salem, 2005 CTPS study

MassDOT Project #605332, Bridge Replacement (Route 114) North Street over North River; in preliminary design
3 2 2 4 1 1 13 High   NA
Route 1A Salem NSTF 4 MassDOT and Salem Yes 2 0 2 2.81 16 MBTA bus stops

MBTA bus Routes 455 and 459

MBTA Commuter Rail at Salem

Ferry service
Yes Yes

The entire segment lies within EJ zones.
CTPS Lower North Shore Transportation Improvement Study proposed improvements for Route 1A in Revere in October 2000; an update may be necessary. 3 2 2 4 1 1 13 High   This arterial segment was not selected because the southern end of this arterial segment is included in the study of Route 1A at Vinnin Square in Marblehead and in Swampscott; this location was selected as the subject of the FFY 2016 Priority Corridors Study.
Route 16 Wellesley MWRC 6 MassDOT and Wellesley Yes 3 0 5 3.57 MBTA Commuter Rail at Wellesley Square, Wellesley Hills, and Wellesley Farms

MWRTA Route 8
N/A Yes

The southern end of the segment lies in an EJ zone.
MassDOT Project #94762, Bridge Rehabilitation, Route 16 (Washington Street) over Route 9, including relocation of retaining wall; completed summer 2010.

MassDOT Project #600712, Reconstruction of Route 16 from Grantland Road to the Newton City Line. The work consisted of paving, drainage improvements, sidewalk reconstruction, traffic signals, and ornamental lighting on Route 16. A signal was installed at the Washington Street/Walnut Street intersection, and the pedestrian crossing 150 feet south of Hillside Road was upgraded, completed in 2004.
3 2 2 4 1 1 13 High FFY 2015 LRTP Outreach The location was suggested in 2014 LRTP outreach through verbal comments at a 495/MetroWest Partnership meeting.
Route 18 Weymouth SSC 6 MassDOT Yes 3 3 10 3.55 Nine MBTA bus stops

MBTA bus Route 225

MBTA Commuter Rail at South Weymouth
Yes Yes

EJ zones lie adjacent to the segment.
MassDOT Project #601630The project consists of reconstructing and widening Route 18 from Highland Place in Weymouth to Route 139 in Abington including the replacement of Bridge W-32-13 over the MBTA. The roadway widening will provide an additional travel lane in each direction.  The proposed roadway cross section consists of four 11.5 foot travel lanes, two 5 foot shoulders and two 5.5 foot sidewalks. Shared accommodations for all users have been provided in accordance with applicable guidelines.  4 2 2 4 1 0 13 High MassDOT District 6 comments, FFY 2015 This arterial segment was not selected because a MassDOT project, currently in construction, would address problems in the entire segment and no study is needed at this time.
Route 129 Wilmington NSPC 4 MassDOT and Wilmington Yes 3 0 5 4.31 MBTA Commuter Rail at Wilmington, North Wilmington, Anderson/Woburn, and Reading N/A None MassDOT Project #601732, Rehabilitation, Route 129 (Lowell Street) from Route 38 (Main Street) to Woburn Street. The project includes full-depth reconstruction and widening, accessible (ADA-compliant) sidewalks, new tree plantings, and bicycle accommodation within the newly paved shoulders. The intersection of Route 129 and 38 was realigned with new traffic signals and the bridge over Maple Meadow Brook was replaced; completed in 2009.

MassDOT Project #608051 will reconstruct Route 38 from Route 62 to the Woburn city line and will add bike lanes, sidewalks, turn lanes, and signal upgrades; in preliminary design.
3 2 2 3 2 1 13 High   N/A
Route 2 Acton MAGIC 3 MassDOT Yes 2 0 1 2.80 MBTA Commuter Rail at South Acton and West Concord N/A Yes MassDOT Project #604472, Resurfacing and Related Work on Route 2 (includes all of Acton); completed in spring 2014

MassDOT Project #607748, Intersection and Signal Improvements on Route 2 and Route 111 at Piper Road and Taylor Road; in preliminary design

MassDOT Project #604609, Traffic Sign Replacement and Safety Improvements on Route 2; completed in summer 2009

TIP Project #606223, Bruce Freeman Rail Trail Construction (Phase II-B) in Acton and Concord to connect the trail across Route 2, programmed in FFY 2018 TIP
2 2 2 4 1 1 12 Medium FFY 2015 LRTP Outreach, MassDOT District 3 comments, FFY 2015 Location has MassDOT projects. A MassDOT road safety audit is scheduled for the Piper Road/Taylor Road intersection; the project is in the preliminary design phase.

The MAGIC subregion expressed interest in a Route 2 study.
Route 60 Arlington ICC 4 Arlington Yes 3 0 2 3.92 Eight MBTA bus stops

MBTA bus Routes 67, 62, 76, 77, 78, 79, 80, 84, and 350
Yes  Yes
CTPS and MAPC Community Transportation Technical Assistance Program evaluated the high-crash location at the intersection at Massachusetts Avenue, March 2010.

MassDOT Project #606885, The contractor is planning to finish the rest of the bike route symbols and electric work, weather permitting (as of 01/06/2017); in construction.
3 2 3 3 0 1 12 Medium   N/A
Routes 2 and 16 (Alewife Brook Parkway) Cambridge ICC 6 DCR Yes 2 0 2 5.77 MBTA bus Routes 79, 350, 62, 67, 74, 76, 78, 84, and 351

MBTA Rapid Transit on the Red Line

MBTA Commuter Rail at Porter Square
Yes Yes

Most of the segment lies within or adjacent to EJ zones.
Alewife Studies, Phase II, CTPS study (2009).

DCR announced a comprehensive study of the parkway system for bike lanes.

MassDOT Project #605637, Improvements at Route 2 and Route 16. The purpose of this project is to perform minor widening, eliminate a merge condition, and improve throughput capacity and vehicle queue storage at the intersection of Route 2 and Route 16 (Alewife Brook Parkway); under construction.
3 2 2 4 0 1 12 Medium LRTP FFY 2015 Outreach The Fresh Pond Residents Alliance identified Fresh Pond Parkway and Alewife Brook Parkway as locations in need of transportation improvements. Concerns include pedestrian safety of young students who walk to Shady Hill School because of high traffic volumes, environmental issues, and lack of livability.
Route 2 (Fresh Pond Parkway) Cambridge ICC 6 DCR Yes 2 1 2 2.31 MBTA bus Routes 75, 71, 72, 73, 74, and 78

MBTA Red Line Rapid Transit

MBTA Commuter Rail at Porter Square
Yes Yes

Two EJ zones are located within 0.5 miles of the segment.
DCR announced that the agency will conduct a traffic study of several intersections along Mount Auburn Street and Fresh Pond Parkway, in partnership with the City of Cambridge and the MBTA. The study will focus on safety measures, bus prioritization, and accessibility.

Conceptual TIP project #987 would acquire Minuteman Path right-of-way in Watertown to connect Minuteman Bikeway from Arlington, Cambridge, and Watertown to Dr. Paul Dudley White Bike Path in Boston.
3 2 2 4 0 1 12 Medium LRTP FFY 2015 Outreach The Fresh Pond Residents Alliance identified Fresh Pond Parkway and Alewife Brook Parkway as locations in need of transportation improvements. Concerns include pedestrian safety of young students who walk to Shady Hill School because of high traffic volumes, environmental issues, and lack of livability.
Route 16 (Revere Beach Parkway and Mystic Valley Parkway) Medford ICC 4 MassDOT Yes 2, 3  2 4 4.18 MBTA bus Routes 90, 97, 99, 100, 106, 108, 110, 112, and 134

MBTA Rapid Transit on the Orange Line at Wellington and on the Red Line at Porter Square

MBTA Commuter Rail at West Medford and Porter Square
Yes Yes

EJ zones are located at the  ends of the segment in Somerville and Everett and 0.2 miles away in Medford.
DCR announced a $500,000 comprehensive study of the parkway system for bike lanes in FFY 2015. The goals of the study include updating traffic information, assessing parkway conditions, and assessing and understanding deficiencies along the heavily cycled parkways.

#604660: Everett-Medford-Bridge Replacements, Revere Beach Parkway (Route 16), E-12-004=M-12-018 Over The Malden River (Woods Memorial Bridge) and M-12-017 Over MBTA and Rivers Edge DriveThe purpose of this project is to replace the existing non-operating draw bridge with a new fixed bridge. (Construction ends in 2020)

3 2 2 4 0 1 12 Medium FFY 2015 MassDOT D4 comments This arterial segment was not selected because it is part of the Mystic River Working Group Study. In addition, the Wynn Everett DEIR (2015) includes intersection improvements and mitigated traffic operations for Revere Beach Parkway and Mystic Valley Parkway.

Route 9 Natick MWRC 3 MassDOT Yes 2 0 8 4.30 MWRTA bus Routes 1, 4, 9, and 10 None Yes

One EJ zone is 0.5 miles away.
MassDOT Project #605091, Work consists of bridge repairs on four bridges over Route 9 and Speen Street, in preliminary design

MassDOT Project #605313 will reconstruct the Route 9/Route 27 interchange; 25% project design stage.

#607732: Framingham-Natick-Cochituate Rail Trail Construction Including Pedestrian Bridge, N-03-014, Over Route 9 and F-07-033=N-03-029 Over Route 30 (begins 2018/2019)

#608281: Framingham-Natick-Adaptive Signal Control On Route 9 (Worcester Road)Installation of adaptive traffic control signal equipment, vehicle detection, communication equipment, and managing software at five traffic signals (three in Framingham plus two in Natick) on Route 9. (completed summer 2017)
3 2 1 4 1 1 12 Medium MassDOT District 3 comments, FFY 2015 This segment was not selected because, according to MassDOT District 3, the installation of an adaptive traffic control system for five signals and the reconstruction of the Route 9 and Oak Street intersection are currently under construction. The Route 9 and Route 27 interchange is currently in design.
Route 16 Newton ICC 6 MassDOT and Newton Yes 3 0 6 2.86 MBTA Routes 59, 170, 505, 553, 554, and 556

MBTA Green Line Rapid Transit

MBTA Commuter Rail at West Newton
Yes Yes

An EJ zone lies adjacent to the segment.
MassDOT Project #606780, Bridge Rehabilitation, Route 16 (Washington Street) over I-90, MBTA/CSX Corporation and Access Road; 25% package comments to DE (as of 02/19/2016).

Conceptual TIP #1067, Washington Street (Phase 2), from Commonwealth Avenue to Perkins Street
2 2 2 4 0 2 12 Medium FFY 2015 LRTP Outreach In FFY 2014, a subregional study was conducted on Washington Street in Newton.

The location was suggested in 2014 LRTP outreach through verbal comments at a 495/MetroWest Partnership meeting.
Route 3A Quincy ICC 6 MassDOT, DCR, and Quincy Yes 3 1 6 3.76 MBTA bus Routes 201, 202, 210, 211, 212, 217, 275, 276, and 217

MBTA Red Line Rapid Transit at Quincy Center, Wollaston, and North Quincy

MBTA Commuter Rail at Quincy Center
Yes Yes

The entire segment lies within or near EJ zones.
MassDOT Project #608569, Intersection improvements at Route 3A (Southern Artery) and Broad Street. The project is planned to be funded through the FFY 2021 TIP; in the preliminary design phase.

MassDOT Project #605729, Intersection and signal improvements at Hancock Street and East/West Squantum streets. The project consists of widening and improvements to the intersection of Hancock Street with East and West Squantum Streets and improvements along Hancock Street to the MBTA access drive; completed in fall 2015.

MassDOT Project #606518. As part of the Quincy Redevelopment project, the city plans to construct a new bridge over the existing MBTA tracks that will connect the downtown area at Market Square and Hancock Street and improve pedestrian conditions along Hancock Street; 25% package received (as of 12/16/2016)

An FFY 2012 CTPS safety and operations study addressed problems at Route 3A and Coddington Street intersection.
3 2 2 4 0 1 12 Medium   Route 3A (Hancock Street and Southern Artery) has received several improvement projects and a CTPS study. The location was suggested in the 2017 MPO outreach program.
Route 16 (Revere Beach Parkway)  Revere ICC 4 MassDOT Yes 2 0 3 2.86 MBTA bus Routes 110, 116, 117, 119, 424, 426, 428, 448, 449, 450, 455, and 459

MBTA Rapid Transit on Blue Line

MBTA Commuter Rail at Chelsea
Yes Yes

The entire segment lies within EJ Zones.
DCR announced a $500,000 comprehensive study of the parkway system for bike lanes in FFY 2015. The goals of the study include updating traffic information, assessing parkway conditions, and assessing and understanding deficiencies along the heavily cycled parkways.

The Wynn Everett DEIR (2015) includes intersection improvements and mitigated traffic operations for Revere Beach Parkway and Mystic Valley Parkway.
2 2 3 4 0 1 12 Medium FFY 2015 MassDOT D4 comments This arterial segment was not selected because it is part of the Mystic River Working Group Study. In addition, the Wynn Everett DEIR (2015) includes intersection improvements and mitigated traffic operations for Revere Beach Parkway and Mystic Valley Parkway.
Route 1  Walpole TRIC 5 MassDOT Yes 3 0 2 2.53 MBTA Commuter Rail at Sharon and Walpole N/A Yes

One EJ zones lies adjacent to the southern end of the segment.
MassDOT's I-95 South Corridor Study presented a comprehensive evaluation of the I-95 and Route 1 corridors south of Route 128 and included a recommended plan of short-term and long-term improvements (June 2010)

MassDOT Project #608480, Resurfacing and related work on Route 1; in preliminary design

MassDOT Project #608599, Stormwater Improvements to treat discharges from Route 1, I-95, and Route 1A to the Neponset River and an Unnamed Tributary; in preliminary design
2 2 3 4 0 1 12 Medium FFY 2015 MassDOT D5 comments The location has MassDOT projects and studies and was not recommended for study by MassDOT Highway District 5.
Route 135 Wellesley MWRC 6 MassDOT and Wellesley Yes 3 0 3 2.97 MBTA Commuter Rail at Natick, Wellesley Square, and Wellesley Hills

MWRTA bus Route 8
None Yes

Most of the segment lies adjacent to EJ zones.
No projects 3 2 2 3 1 1 12 Medium   None
Route 3A Weymouth SSC 6 MassDOT Yes 3 0 1 2.74 30 MBTA bus stops
MBTA bus Routes 220, 221, and 222

MBTA Commuter Rail at Quincy Center, Weymouth Landing/ East Braintree, and West Hingham

Ferry service
Yes Yes

An EJ zone in Quincy is 0.2 miles from the segment.
MassDOT Project #608231, The intent of this project is to reconstruct Route 3A and address poor traffic operations along the corridor. The project will also upgrade accommodations for bicyclists and pedestrians; in design

MassDOT Project #604382, Route 3A (Washington Street) Bridge; construction completed winter 2016/2017

MassDOT Project #608483, Work consists of resurfacing on Route 3A; in preliminary design
2 2 2 4 1 1 12 Medium   A road safety audit was completed for Route 3A in Weymouth in September 2016. The audit identified the problems and needs on the roadway, and suggested short-, medium-, and long-term improvements. MassDOT District 6 indicated that a study would probably be redundant as the audit provided the information needed to advance Project #608321 in design.
Route 62 Bedford MAGIC 4 MassDOT and Bedford No 5 0 1 3.65 Three MBTA bus stops

MBTA bus Route 62
Yes  None Great Road Project: Master Plan and Conceptual Design, prepared by VHB for the Town of Bedford in 2011. The plan was to improve pedestrian and bicycle access, recommend streetscape improvements that would highlight the “Center” of Bedford while taking into consideration traffic flow through the area, crosswalk locations, intersection and traffic control improvements, property access, and parking.  3 2 2 2 1 1 11 Medium   Forms part of Routes 4 and 225 arterial segment.
Route 99 Everett ICC 4  Everett Yes 3 0 3 3.23 40 MBTA bus stops

MBTA bus Routes 97, 104, 105, 109, 110, 112, 99, and 106
Yes Yes

The entire segment lies within EJ zones.
MassDOT Project #602383 reconstructed Route 99 with a traffic signal upgrade, from Second Street to the Malden city line in 2008; completed autumn 2007. All work is complete except punch list work; completed 2008.

MassDOT Project #602382 reconstructed Route 99 from Sweetser Circle to the Alford Street Bridge in 2013; completed spring 2013.
2 2 2 4 0 1 11 Medium   Not recommended for study because the MassDOT projects listed completely reconstructed Route 99 with signal improvements from Alford Street Bridge to the Malden city line.
Route 16 Holliston MWRC 3 MassDOT and Holliston Yes 3 0 2 2.09 MWRTA bus Route 6 None None MassDOT Project #605745, Reconstruction of Route 16 from Quail Run to the Sherborn town line; in preliminary design

2011 CTPS study, Route 126 Corridor: Transportation Improvement Study

2008 CTPS study, Washington Street (Route 16/126) at Hollis Street
3 2 1 2 1 2 11 Medium FFY 2015 LRTP Outreach, MassDOT District 3 comments, FFY 2015 Location has MassDOT projects and CTPS studies, which have not been implemented.

The 495/MetroWest Partnership expressed interest in a Route 16 study.

The section that experiences the most crashes is the town center portion (under Holliston jurisdiction). A road safety audit was performed for the town center portion in December 2012.
Route 16 Natick MWRC 3 Natick Yes 3 0 0 2.21 None N/A Yes No projects 1 2 2 3 1 2 11 Medium FFY 2015 LRTP Outreach, MassDOT District 3 comments, FFY 2015 The 495/MetroWest Partnership expressed interest in a Route 16 study. Specific issues in this segments include improvements to accommodate pedestrians and bicyclists.
Route 9 Newton ICC 6 MassDOT Yes 2 0 7 5.99 Six MBTA bus stops

MBTA bus Routes 60, 52, and 59

MBTA Green Line
Yes Yes

An EJ zone in Brookline is 0.3 miles from the segment.
MassDOT Project #604327, Resurfacing and Related Work on Route 9 (Boylston Street) from the Wellesley/Newton city line to Newton/Brookline city line; completed in summer 2012

MassDOT Project #601704, Reconstruction and Signal Improvements on Walnut Street, from Homer Street to Route 9; in design; 25% package received (as of 12/23/2013)

MassDOT Project #606635, Reconstruction of Highland Avenue, Needham Street, and Charles River Bridge, from Webster Street to Route 9; 75% package received (as of 09/23/2016).

MassDOT Project #604327, resurfaced this segment, including updates to guardrails and improvements to the existing drainage structures; construction was completed in 2012.
2 2 2 4 0 1 11 Medium MassDOT District 6 comments, FFY 2015 According to MassDOT District 6, improvements were recently made to accommodate new developments. An analysis of the new existing conditions would be helpful to compare with the future projected conditions.
Route 1 Norwood TRIC 5 MassDOT Yes 3 0 4 4.85 MBTA Commuter Rail at Islington, Dedham Corp Center, Endicott, Norwood Depot, Norwood Central, Windsor Gardens, and Plimptonville N/A Yes

One EJ zones lies adjacent to the southern end of the segment.
MassDOT's I-95 South Corridor Study, provided a comprehensive evaluation of the I-95 and Route 1 corridors south of Route 128 that included a recommended plan of short-term and long-term improvements (June 2010)

MassDOT Project #608052, Route 1 at Morse Street (approved by PRC Nov. 2014); in preliminary design

MassDOT Project #605857, Route 1 at University Avenue and Everett Street; Town design is at pre-25%

MassDOT Project #605321, Bridge Preservation, Route 1 over the Neponset River; in design stage
2 2 2 4 0 1 11 Medium FFY 2015 MassDOT D5 comments The location has MassDOT projects and studies and it is not recommended for study.
Route 1A Revere ICC 4 MassDOT Yes 2 0 1 3.93 15 MBTA bus stops

MBTA bus Routes 110, 116, 117, 411, 424, 426, 439, 441,  442, 448, 449, 450, and 455

MBTA Rapid Transit on Blue Line

MBTA Commuter Rail at Chelsea and River Works
Yes Yes

The entire segment lies within EJ zones.
Conceptual TIP Project #982, Mahoney Circle (Bell Circle) Grade Separation 2 2 2 4 0 1 11 Medium   This arterial segment was not selected because it is part of the Mystic River Working Group Study. In addition, the Wynn Everett DEIR (2015) includes intersection improvements and mitigated traffic operations for Revere Beach Parkway and Mystic Valley Parkway.
Route 9 Wellesley MWRC 6 MassDOT Yes 2 0 9 2.76 MBTA Commuter Rail at Wellesley Hills and Wellesley Farms

MWRTA bus Route 1
None None MassDOT Project #601586, Intersection Improvements at Route 9 (Worchester Street) and Oak Street, from 1500 feet West of Oak Street to 300 feet East of Overbrook Drive; construction ended in spring 2015

MassDOT Project #607340, Resurfacing on Route 9, from Dearborn Street to the Natick town line; in preliminary design

MassDOT Project #606530, Drainage Improvements along Route 9 Boulder Creek Culvert (Design Only); 25% design stage (as of 06/10/2015)

MAPC Land Use/Corridor Study (fall 2013)
2 2 2 3 1 1 11 Medium MassDOT District 6 comments, FFY 2015 MassDOT has a preliminary assessment of this corridor that will develop into 25% design plans for roadway improvements.
Memorial Drive (Routes 2 and 3) Cambridge ICC 6 DCR Yes 2 2 5 4.99 MBTA bus Routes 747, 1, 47, 64, 66, 70, 70A, 71, 73, 86, and 701

MBTA Rapid Transit available on the Red and Green Lines

MBTA Commuter Rail at North Station, Back Bay, Yawkey, Porter Square, and Belmont
Yes Yes

Most of the segment lies within or adjacent to EJ Zones.
DCR announced a $500,000 comprehensive study of the parkway system for bike lanes in FFY 2015. The goals of the study include updating traffic information, assessing parkway conditions, and assessing and understanding deficiencies along the heavily cycled parkways. 3 2 1 4 0 0 10 Low   None
Route 2 Lincoln MAGIC 4 MassDOT Yes 2 0 2 2.93 MBTA Commuter Rail at Concord and Lincoln N/A None MassDOT Project #602894, Crosby's Corner (2 at 2A) Improvements; under construction

MassDOT Project #604629, Resurfacing and Related Work on Route 2; completed in 2010

FFY 2013 Priority Corridors for LRTP Needs Assessment Study (Concord and Lincoln)
2 2 2 2 1 1 10 Low   Route 2 was suggested during MPO outreach as a route experiencing congestion that affects MAGIC communities and Cambridge.

There are many projects and studies conducted for this corridor, including the Route 2 (Crosby's Corner) improvements.
Route 3A Marshfield SSC 5 MassDOT Yes 3 0 1 2.41 GATRA bus

MBTA Commuter Rail at Greenbush
None None The corridor is within the limits of MassDOT Project #605664, Resurfacing and Related Work on Route 3A (Duxbury town line northerly to Scituate town line), work includes patching and microsurfacing, shoulder reconstruction, and drainage structures; 100% design stage; no construction funding identified 2 2 2 2 1 1 10 Low FFY 2015 MassDOT D5 comments None
Route 135 Natick MWRC 3 Natick Yes 3 0 3 2.97 MWRTA bus Routes 10 and 11

MBTA Commuter Rail at Natick and West Natick
None None MassDOT Project #600573 reconstructed Route 135 in Natick in 2008. More extensive improvements were proposed in the downtown area, on East Central Street between North Main Street and Union Street, including signal upgrades, new sidewalks, pavement rehabilitation, and shoulders; Contract #32302 was completed; all construction operations have been suspended (as of 06/30/2007)

2010 CTPS study, West Central Street (Route 135) at Speen Street.
3 2 2 1 1 1 10 Low MassDOT District 3 comments, FFY 2015 Congestion in the downtown area; likely focus area would be on the intersection of Route 135 at Route 27 and the intersection of Route 135 at Speen Street because of the crash history of those locations.
Route 129 Reading NSPC 4 MassDOT and Reading Yes 3 0 0 3.06 11 MBTA bus stops

MBTA bus Route 136

MBTA Commuter Rail at Wakefield, Reading, and Woburn
Yes None No projects 2 2 2 1 2 1 10 Low   None
Route 1 Sharon TRIC 5 MassDOT Yes 3 0 1 2.36 MBTA Commuter Rail at Sharon and Walpole N/A None MassDOT's I-95 South Corridor Study, provided a comprehensive evaluation of the I-95 and Route 1 corridors south of Route 128 that included a recommended plan of short-term and long-term improvements (June 2010)

MassDOT Project #603622, Bridge Rehabilitations, Route 1/Route I-95; completed in 2010
2 2 3 2 0 1 10 Low FFY 2015 MassDOT D5 comments Segment has MassDOT projects and studies.
Route 16 Sherborn SWAP 3 Sherborn Yes 3 0 0 2.96 None N/A None 2002 CTPS study, Traffic Congestion in SWAP Subregion: Sherborn Town Center Traffic-Flow Improvement Study

Conceptual TIP #915, Washington Street (Route 16)
1 2 1 3 1 2 10 Low FFY 2015 LRTP Outreach, MassDOT District 3 comments, FFY 2015 Location was suggested in 2014 LRTP outreach at a 495/MetroWest Partnership meeting.

The section that experiences the most crashes and congestion is the town center portion, where Route 16 and Route 27 combine and split.
Route 9 Southborough MWRC 3 MassDOT Yes 2 0 2 3.11 MWRTA bus Route 7 None None MAPC Land Use/Route 9 Corridor Study (fall 2013).

The CTPS Safety and Operations at Intersections study evaluated congestion and safety issues at the Route 9/Oak Hill Road/Central Street intersection in FFY 2012.

MassDOT's I-495/Route 9 study, November 2013. The western section of Route 9 in Southborough between the I-95 interchange and Crystal Pond Road was evaluated for short-term and long-term improvements as part of this study.

MassDOT Project #607172, Resurfacing and Related Work on Route 9, from Westborough to just west of White Bagley Road; construction ends in summer 2016
2 2 2 2 1 0 9 Low MassDOT District 3 comments, FFY 2015 Most of the intersections on this corridor have already been studied, as MassDOT District 3 has noted.
Route 1 Westwood TRIC 6 MassDOT Yes 3 0 0 3.49 None N/A None MassDOT's I-95 South Corridor Study provided a comprehensive evaluation of the I-95 and Route 1 corridors south of Route 128 and included a recommended plan of short-term and long-term improvements (June 2010)

MassDOT Project #603162, Route 128 Add-a-Lane Bridges (Bridge III), Route 1 and 1A over I-95/128; completed in 2012
1 2 2 3 0 1 9 Low MassDOT District 6 comments FFY 2015 Segment has MassDOT projects and studies.
Route 3A Scituate SSC 5 MassDOT Yes 3 0 0 2.21 MBTA Commuter Rail at Greenbush, North Scituate, and Cohasset N/A None FFY 2013 Subregional Priority Corridor Study

The corridor is within the limits of MassDOT Project #605664, Resurfacing and Related Work on Route 3A (Duxbury town line northerly to Scituate town line); no construction funding identified. Work includes patching and microsurfacing, shoulder reconstruction, and drainage structures; 100% design stage.
1 2 2 1 1 1 8 Low FFY 2015 MassDOT D5 comments The FFY 2013 Subregional Priority Corridors Study was conducted within the segment. MassDOT District 5 comments refer to MassDOT Project #605664 (in the 100% design stage).
Route 62  Concord MAGIC 4 Concord Yes 3 0 0 3.66 MBTA Commuter Rail at Concord and West Concord N/A None MassDOT Project #604646 Reconstruction of Main Street (Route 62) from Water Street to the Acton town line. The purpose of this project is to reconstruct a 1.2 mile section of Main Street. The project includes the reclamation and repaving of the existing roadway, installation of granite curbing, ADA, drainage upgrades, and the addition of a sidewalk from Brook Trail Road to the Acton Town Line. 1 2 1 1 1 1 7 Low   None
Notes:
*Functional Class
2 = principal arterial; 3 = principal arterial other (rural minor arterial or urban principal arterial); 5 = minor arterial (urban minor arterial or rural major collector)
**Number of HSIP-eligible crash clusters
HSIP-eligible crash clusters are defined by MassDOT as crash clusters that rank within the top five percent of crash clusters for each regional planning agency, based on the Equivalent Property Damage Only (EDPO) index. In the EDPO index, property damage only crashes are awarded one point each, crashes involving injuries are given five points each, and fatal crashes are given 10 points each. In the Boston region, the 896 intersections in the top five percent have crash clusters with a minimum EDPO value of 42.
***Selection Criteria
Safety Conditions: Segment has a high crash rate for its functional class, contains an HSIP-eligible crash location, a top-200 high-crash location, and/or a significant number or HSIP-eligible clusters of pedestrian or bicycle crashes.
Congested Conditions: Segment has a Travel Time Index of at least 1.3 and/or of at least 2.0, that is, which signify that it experiences delays during peak periods.
Multimodal Significance: Segment supports transit or bicycle or pedestrian activities, has a need to improve these activities, and/or has a high volume of truck traffic serving regional commerce.
Regional Significance: Segment is in the National Highway System, carries a significant proportion of regional traffic, lies within 0.5 miles of Environmental Justice transportation analysis zones, and/or is essential for regional economic, cultural, or recreational development in the area.
Regional Equity: Location is in a subregion that has not had a priority corridor study before, or location is in a subregion that has not had a priority corridor study in the in last three years.
Implementation Potential: Improvements to the segment are proposed or endorsed by the roadway administrative agency (agencies), proposed or endorsed by the subregion and are a priority for the subregion, and/or have strong support from other stakeholders.
Acronyms
ADA = Americans with Disabilities Act. BAT = Brockton Area Transit Authority. CTPS = Central Transportation Planning Staff. DCR = Department of Conservation and Recreation. DEIR = Draft Environmental Impact Report. EJ = Environmental justice. FFY = Federal fiscal year. GATRA = Greater Attleboro Taunton Regional Transit Authority. HSIP = Highway Safety Improvement Program. ICC = Inner Core Committee. LRTP = Long-Range Transportation Plan. MAGIC = Minuteman Advisory Group on Interlocal Coordination. MAPC = Metropolitan Area Planning Council. MassDOT = Massachusetts Department of Transportation. MBTA = Massachusetts Bay Transportation Authority. MPO = Boston Region Metropolitan Planning Organization. MWRC = MetroWest Regional Collaborative. MWRTA = MetroWest Regional Transit Authority. NSPC = North Suburban Planning Council. NSTF = North Shore Task Force. PRC = MassDOT Project Review Committee.  SSC = South Shore Coalition. SWAP = South West Advisory Planning Committee. TIP = Transportation Improvement Program. TRIC = Three Rivers Interlocal Council. UPWP = Unified Planning Work Program. VHB = Vanasse, Hangen, Brustlin Inc.
Source: Central Transportation Planning Staff.
